Jones - Ultralight Butterfly Splitboard

C$2,200.00
Jones
1 In stock
The ultralight, technical objective splitboard Ideal for high alpine expeditions and technical backcountry touring
Size :
+-
Add to cart

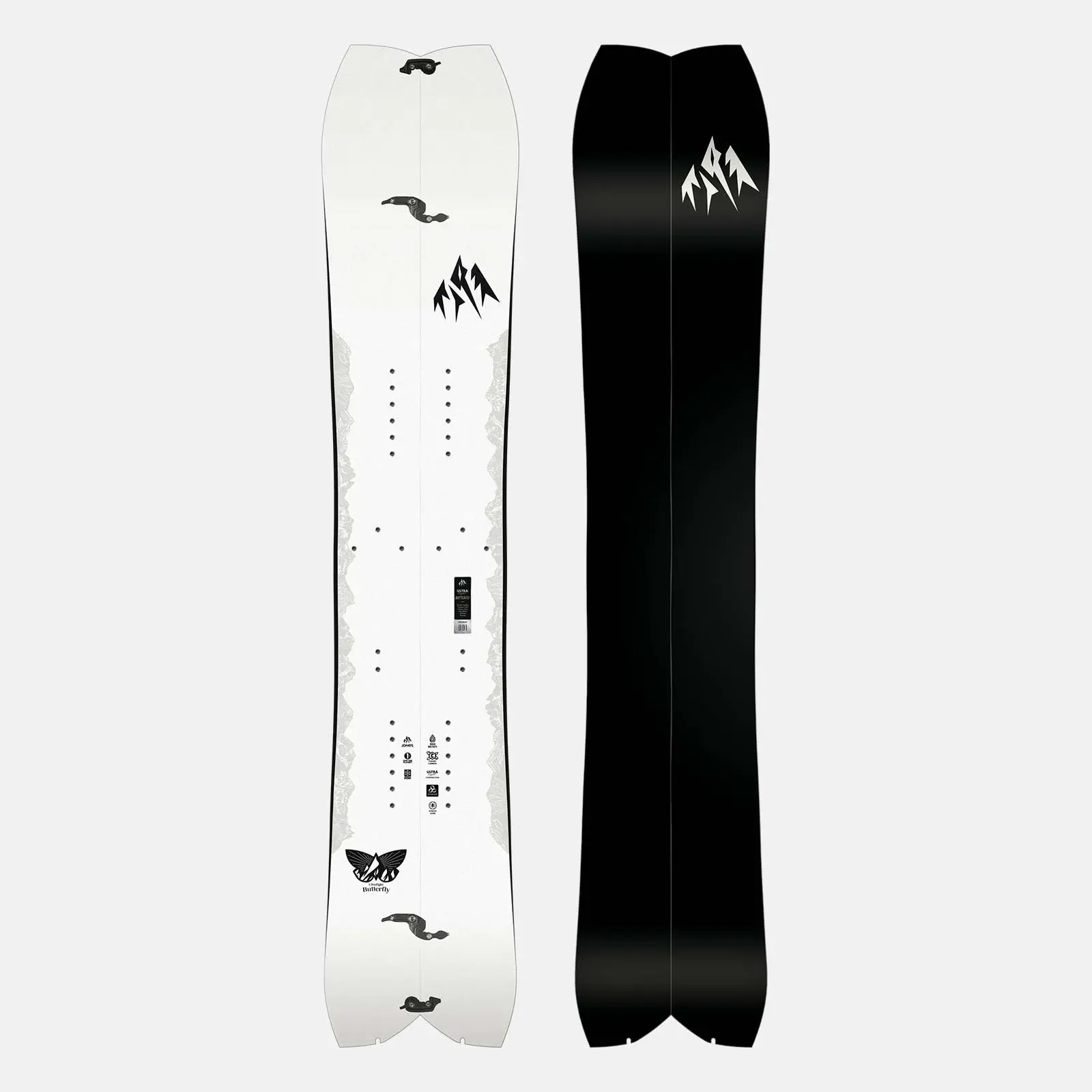

The Ultralight Butterfly Split is an ultralight split with a compact shape that's made for high alpine pursuits where the balance of weight and performance are hyper critical. By reducing the tip and tail size, but keeping the contact points pushed out, the Butterfly Split has a super long effective edge which maximizes edge power in variable alpine conditions.



  • Fusion Carbon construction to reduce weight
  • Compact shape with long effective edge
  • Full camber profile for edge power
  • Wood + Koroyd core to absorb chatter
  • 3D Contour Base for ultra fast glide and fluid turn intiation

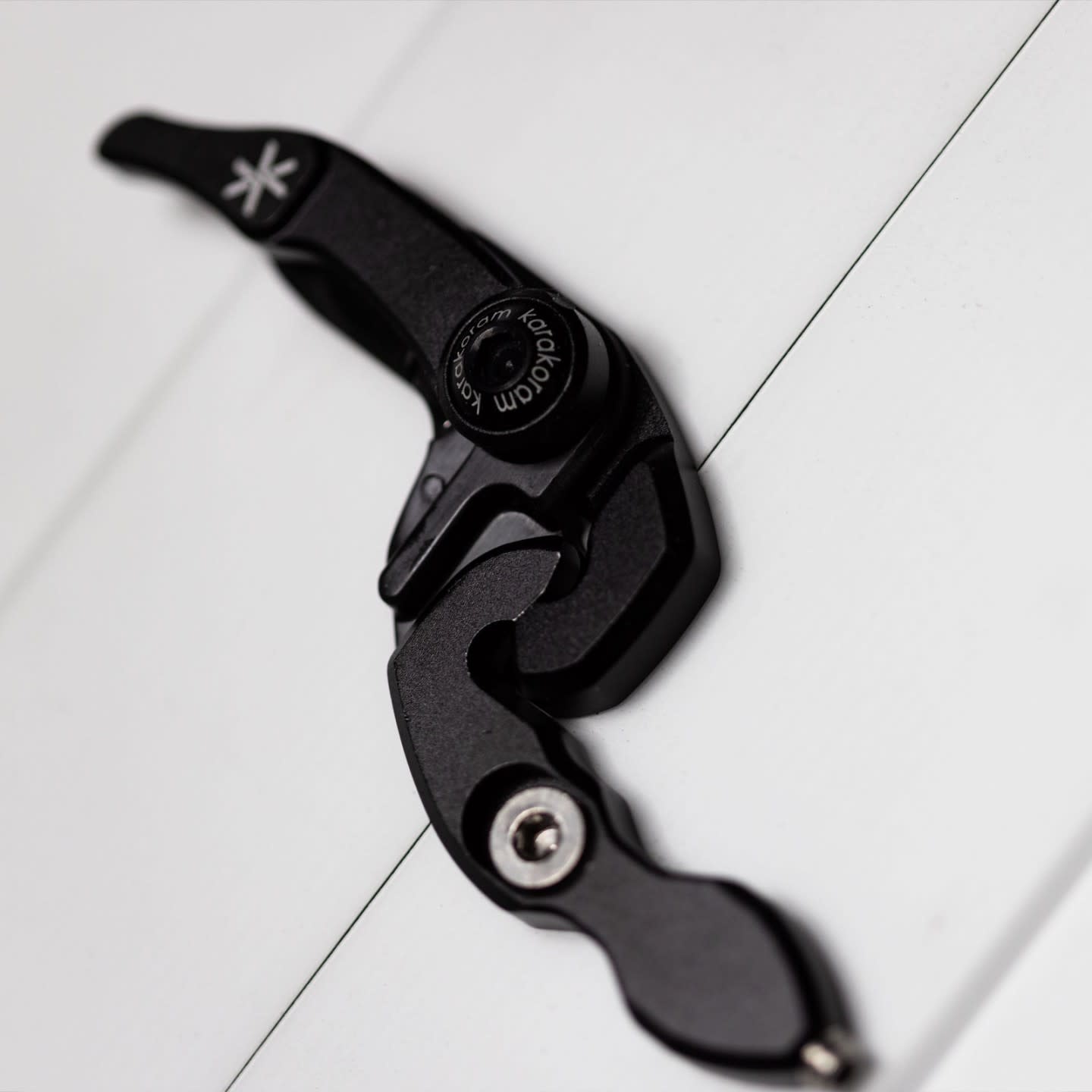

  • Boltless bridge and Karakoram 3C Clips for a tight board connection

Board Size (cm) 150 154 158
Board Weight  2,5kg / 5,5lbs 2,7kg / 5,94lbs 2,8kg / 6.17 lbs
Surface Area (dm2) 40,05 41,62 43,22
Contact Length (cm) 116,6 120 123,4
Effective Edge Length (cm) 123,6 127 130,4
Tip Length (cm) 20,2 20,5 20,8
Tail Length (cm) 13,2 13,5 13,8
Waist Width (cm) 25,3 25,6 25,9
Underfoot Width - Front Foot (cm) 26,23 26,565 26,97
Underfoot Width - Rear Foot (cm) 26,31 26,643 27,046
Tip Width (cm) 29,9 30,3 30,69
Tail Width (cm) 29,1 29,5 29,89
Sidecut Radius (m) 8,5 8,8 9,1
Taper (cm) 0,8 0,8 0,8
Reference Stance (cm/in) - - -
Centered Stance (cm/in) 52 / 20,4 54 / 21,2 58 / 22,8
Insert Pack Standard Pack Splitboard Pack Splitboard Pack
Stance Setback (cm) 3 3 3
The dimensions of a snowboard define how that board performs on snow. The dimension specs of all our models are fine tuned for specific styles of riding. Understand how waist width, flex and sidecut and stance dimensions effect board performance to find the best board for you.
